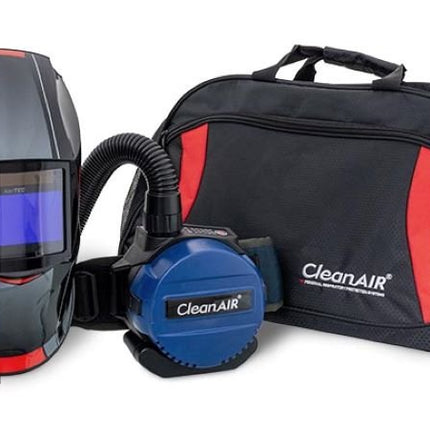

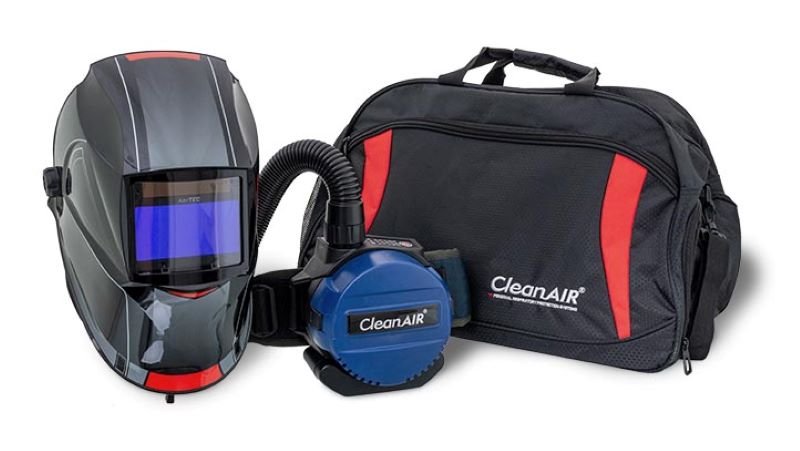

Description AerTEC YOGA
Complies to: AS/NZS 1716:2012, AS/NZS 1337.1:2010
AerTEC YOGA represents a high-quality welding helmet for a price you can afford. It is a durable, lightweight welding shield in combination with high-quality auto-darkening filter AerTEC X110 True Colour.
This helmet is suitable for most of the welding methods including TIG, even with very low welding currents. In combination with powered air purifying respirators or airline systems CleanAIR® provides an advanced level of protection against hazardous contaminants in very demanding welding environments.
Product Features
Advantageous price/performance ratio
High-quality auto-darkening filter - optical quality 1/1/1/2
True Colour technology ADF as an option
Lightweight and comfortable
Enlarged viewing area 100 x 53mm
Continuously adjustable shade 5-8/9-13
The wide range of adjustable sensor sensitivity
Individual delay settings
Grinding mode
Areas of Application
Suitable for most of the welding methods including TIG, even with very low welding currents. Technical Data
Weight
650gms
ADF dimension
110mm x 90mm
Viewing area
100mm x 53mm
Hose connection
QuickLOCK
Protection factor (NPF)
50
Certification
EN 12941 TH2, EN 14594 2A/2B, EN 175 B, EN 379 1/1/1/2
BASIC PAPR Unit
Certified to AS/NZS 1716:2012 for Respiratory protective devices
Features & Benefits
Lightweight and compact
Exchangeable Li-Ion battery
Adjustable airflow in five levels (170 - 240lpm)
Flow Control system maintains constant airflow regardless of the level of filter clogging or battery charge
Audio visual alarm
Indication of filter clogging and battery charge
Newly designed LED control panel
Simple one-button operation
New click-lock system for easy attaching the filter cover
Built-in barometric sensor - automatic airflow compensation depending on altitude. Works from -500m up to 4500m.
Includes
P3 Filter & Prefilter
Li-Ion battery
Battery charger
Comfort padded belt
Flow indicator
Pre-filter
Fan unit
Filter cover
Specifications
Weight 880 g (including battery)
Dimensions 191x173x104 mm
Airflow 170 - 240 lpm
Alarm audio and visual
Operation* / charging time < 10 / < 5 h
Battery Li-Ion 7.2 V / 5.2 Ah
Hose connection CA40x1/7"
Certification
Certified to AS/NZS 1716:2012 for Respiratory protective devices
EN 12941 TH3
