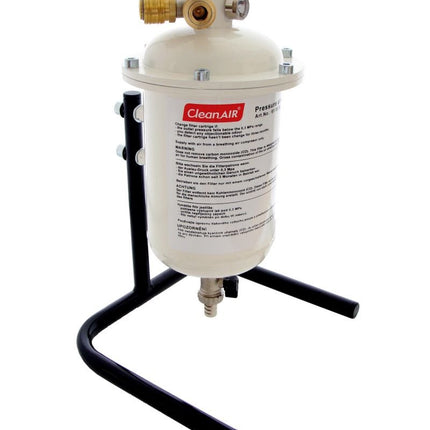

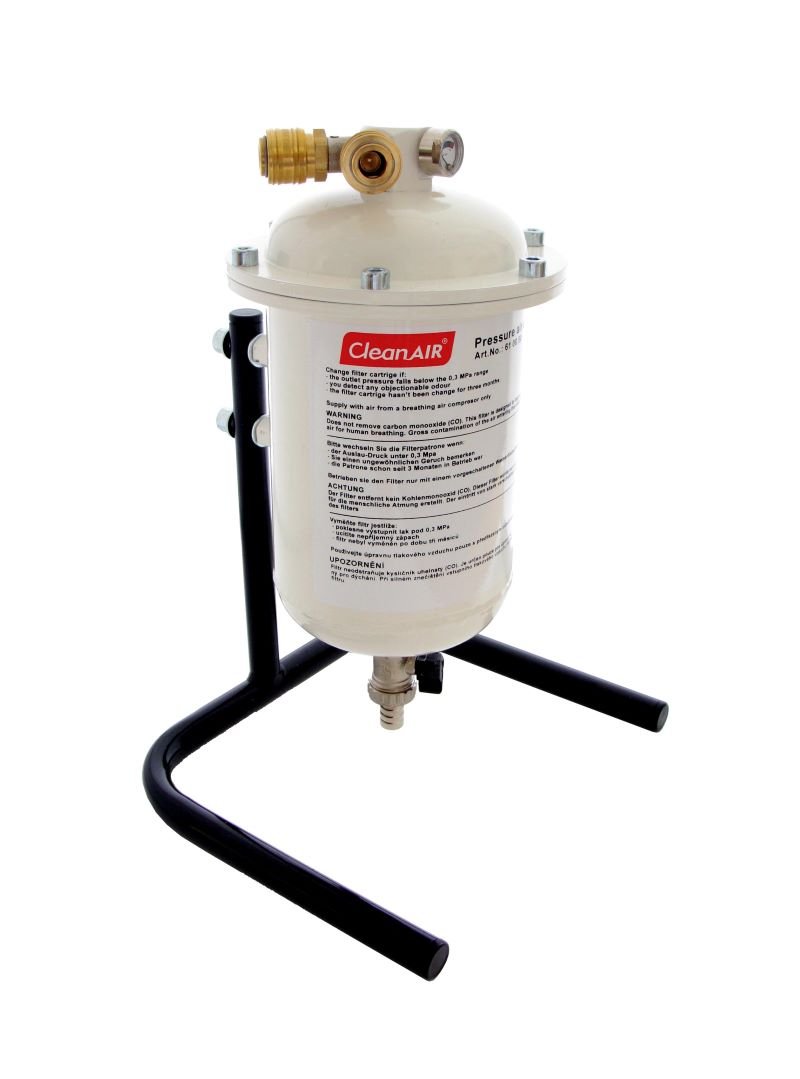

Description CleanAIR Pressure Flow Master with stand and filter
CleanAIR® Pressure Conditioner
CleanAIR® Pressure Conditioner contains the high capacity combined filter that removes solid particles, oil mist and unpleasant odours out of the air line system.
Areas of application
Automotive industry
Welding
Grinding
Surface finishing operations
Heavy industrial environments
Chemical industry
Laboratories
Product Features
Low weight
Economical operation
High levels of airflow
Warning low pressure system
Option of filtration of supplied air with CleanAIR® Conditioner
Compatible with a wide range of CleanAIR® headtops
Includes
Filter
Pressure Conditioner
Stand
Optional wall mount
Specifications
Dimensions:
240 mm / 380 mm / 220 mm
Inlet connection:
RECTUS 25, 26 and CEJN 320
Outlet connection:
RECTUS 25, 26 and CEJN 320
Inlet pressure:
300 - 1 000 kPa
Materials:
Steel - powder-coated finish
Recommended inlet hose:
R610030 - Pressure hose standard (length: 10 m)
Recommended outlet hose:
R610046 - Pressure hose spiral (length: 10 m)
Storage conditions:
-10°C to + 55°C, humidity 20 - 95 % Rh
Operating conditions:
0°C to + 60°C, humidity 20 - 95 % Rh
Weight:
6800 grams
